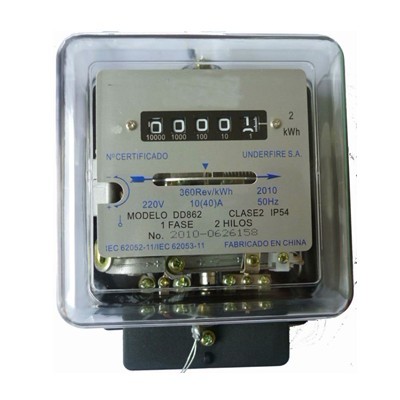

Single Phase Energy Meter - DD862
| Model Number | DD862 |
|---|---|
| Origin | Zhejiang China |
| Certifications | |
| Manufacturer | |
| Packing Information: | 12PCS/CTNS |
Contact Supplier
| Price Terms | EX-works, FOB, C&F, CIF |
|---|---|
| Payment Terms | T/T, Western Union, MoneyGram, PayPal, L/C |
| Minimum Order | 100 pieces |
| Delivery Time | 10 days |
| Unit Price |
Product Brief
| Place of Origin: Zhejiang China (Mainland) | Brand Name: OEM | Model Number: DD862 |
| Display Type: Analog Only | Phase: Single Phase | Measuring Energy Range: 5-20A 10-40A 20-80A 30-... |
| Accuracy Class: 2.0 | Output Voltage: 220V | Mechnical Meter: Single phase Mechnical Meter |
Specifications
The DD862 single phase meter is designed to meet the IEC62053-21,IEC62052-11.
Construction
- Meter case
- Two types of cases are available One is the insulating case of protective-class 2 and the other is the weather-proof case complying to IEC60529 and Ip54.
- Terminal block
- The terminal block is molded of Bakelite . The voltage test link can be located inside or out-side of the meter case. The maximum diameter of the terminal hole is 8.5mm.
- Driving element
- The driving element consists of a voltage element and a current element, both of which are fixed to the frame. The voltage element has a low load adjustment mechanism, and the current element has an inductive load adjustment mechanism.
- Rotor
- The rotor shaft is made of aluminum alloy with a small hole in the upper end for storing lubrication and for fitting a brass bearing The worm is turned of brass, and is acid-cleaned or nickel-plated. The worm and shaft can be detached.
- Braking element
- The magnet is made of AINiCo5 alloy and designed as U-shaped so that the effect of short-time over current upon the magnet is negligible. The full load error can be fine controlled by adjustment mechanism.
- Frame
- The frame is die-casted by high-quality Al alloy of stable property to avoid distortion. The application of static spray-painting on the surface prevents the frame from oxidation.
- Upper bearing
- The pin is made of high-quality abrasion-proof stainless steel and is embedded on the brass pin base.
- Lower bearing
- Both double jewel bearing and magnetic bearing are available.
- Register
- The DD862 meter with direct-reading cyclometer type register is available.
- The register is self-located and is mounted on the frame by one screw. Fixing with two screws is also available but needs to be manually adjusted. There are two types of gears available: brass gears and self-lubricating plastic gears.
- Technical Parameter
| 1 | Basic current (lb) A | 3 5 10 15 5 10 20 30 |
| 2 | Maximum current(lmax) A | 9 15 30 45 20 40 80 100 |
| 3 | Overload capacity | 300% 400% |
| 4 | Reference voltage Un | 110V,120V,220V,230V,240V |
| 5 | Reference frequency fn | 50Hz,60Hz |
| 6 | Power loss in voltage circuit | 50Hz:≤1.3W/6VA 60Hz:≤1.1W/5.5VA |
| 7 | Power loss in current circuit | ≤0.6VA |
| 8 | Running with no-load | 0.8~1.1Un |
| 9 | Starting current | 0.5%lb |
| 10 | AC voltage test 50Hz,1mm | 2kV |
| 11 | Impulse voltage test 1.2/50µs | 6kV |
| 12 | Rotor speed At lb | 22r/min |
| 13 | Basic torque at lb | 4×10-4N·m |
| 14 | Weight of disc | 21g |
| 15 | Weoght of meter | 1.6kg |
| 16 | Accuracy | Class2 |
