online Oxygen O2 Concentration Meter - ZA-2010
| Model Number | ZA-2010 |
|---|---|
| Origin | Henan China |
| Certifications | |
| Manufacturer | |
| Packing Information: | Carton Box |
| Price Terms | EX-works, FOB, C&F, CIF |
|---|---|
| Payment Terms | T/T, Western Union, MoneyGram, PayPal, L/C |
| Minimum Order | 1 pieces |
| Delivery Time | 10 days |
| Unit Price |
| Place of Origin: Henan China (Mainland) | Brand Name: Globeinstrument | Model Number: ZA-2010 |
Online O2 Concentration Meter
1.Range 0-2%
2.4-20mA output
3.Explosion-proof with intrinsic safe type sensor unit
ZA-2010 online Oxygen O2 Concentration Meter
Brief introduction
ZA-2010 on-line Oxygen Concentration Meter represents the up-to-date technology for oxygen measurement, the intrinsic safe probe has the performance of high precision, resistance against corrosion of weak acid and weak base, and therefore, it can be used for measurement of oxygen content in many domains.
The sensor of ZA-2010 was powered by the fuel battery with the up-to-date technology, and its life term is beyond 3 years.
The innovative design of battery is to output with negative signal, and the loss of energy and leakage of electricity quantity are reduced. The battery is not affected by other background gas or hydrocarbon and acid gases.

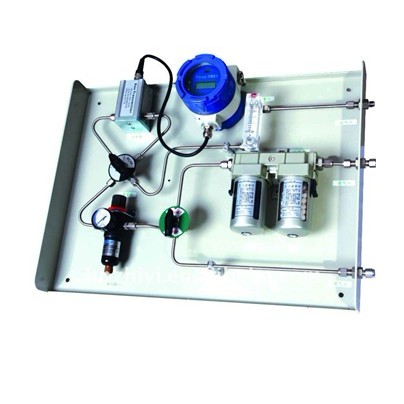

In order to make the use of ZA-2010 more reliable, we have designed a perfect sampling system, which can effectively remove impurity and moisture, meanwhile, in order to match with site installation, the sampling system can be selected according to the actual circumstance on site.
Main features
- Explosion-proof with intrinsic safe type sensor unit
- High precision, anti-interference, quick response speed
- Touch screen, LCD operation and control, Chinese & English menu display
- Stable performance, firm and reliable
- Special-purpose acid and alkali pretreatment sampling system
- Display onsite and remotely
Technical parameters
|
Range |
0…2% O2 |
|
|
Precision |
±0.03% |
|
|
Repeatability |
±0.01% |
|
|
Response time |
20 seconds |
|
|
Analog output |
4…20mA (maximum load 800Ω) |
|
|
Alarm output |
DC24V 1A (two-way alarm output, independent programming is available) |
|
|
Operation temperature |
-10…40°C |
|
|
Degree of protection |
IP66 |
|
|
Intrinsic safe |
Ex iaII C T3 |
|
|
Installation mode |
Control unit |
Plate mounting onto the control cabinet dimension:139mm×139mm×147mm(0.5kg) |
|
Sampling system |
Wall mounting to the site dimension: 600mm×450mm×70mm (9kg) |
|
