Rotor meter - 4-20mADC
| Model Number | 4-20mADC |
|---|---|
| Origin | Shanghai, China |
| Certifications | |
| Manufacturer | |
| Packing Information: | cartons |
| Price Terms | EX-works, FOB, C&F, CIF |
|---|---|
| Payment Terms | T/T, Western Union, MoneyGram, PayPal, L/C |
| Minimum Order | 1 set |
| Delivery Time | 3 days |
| Unit Price |
| Accuracy: 1.0% | Display: pointer,LCD | Output: 4-20mADC |
| Spectum: 15,25,40,50,65,80,100,150mm |

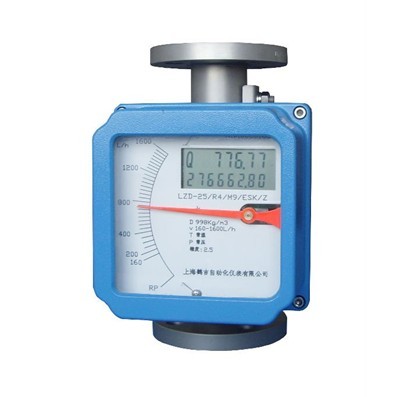

Rotor meter
1>Hi-accuracy popularly:1.0%,Special calibrated:0.5%
2>Output:4-20mADC
3>Display:pointer,LCD
Rotor flow meters
Feature:
1.Low pressure loss.
2.Hi-accuracy popularly:±1.0%,Special calibrated:±0.5%.
3.Low velocity min.velocity of flow:less than1.5m/s
4.Compensation with temperature and pressure compensation(option).
5.Lubricate with lubricated system(option)
6.LCD display
7.4~20mADC.
8.Spectum
15,25,40,50,80,100,150mm
Specifition:
|
Model |
Upper flow (m3/h) |
Span |
Error (%) |
Pressure (mPa) |
|
|
Water |
Air |
||||
|
LZZ-15 LZD-15 |
0.025 |
0.7 |
10 |
1.5 ~ 2.5 |
1.6 *greater than1.6 |
|
0.04 |
1.1 |
||||
|
0.06 |
1.8 |
||||
|
0.1 |
2.8 |
||||
|
0.16 |
4 |
||||
|
0.25 |
7 |
||||
|
0.4 |
10 |
||||
|
LZZ-25 LZD-25 |
0.6 |
16 |
|||
|
1 |
30 |
||||
|
1.6 |
45 |
||||
|
2.5 |
70 |
||||
|
LZZ-40 LZD-40 |
4 |
110 |
|||
|
6 |
160 |
||||
|
LZZ-50 LZD-50 |
10 |
250 |
|||
|
16 |
400 |
||||
|
LZZ-80 LZD-80 |
25 |
750 |
|||
|
40 |
750 |
||||
|
LZZ-100 LZD-100 |
60 |
1800 |
|||
|
60 |
2500 |
||||
|
LZZ-150 LZD-150 |
160 |
4000 |
|||
NOTE: The model LZD with 4~20mA Output
Mark "*" means specital order.
