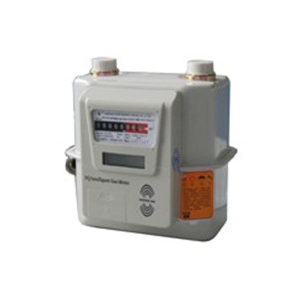

Contactless IC Card Gas Meter ISM-003 - ISM-003

Contactless IC Card Gas Meter ISM-003
Model NumberISM-003
Originchina
Certifications
Manufacturer1
Packing Information:industry packing

Contact Supplier
Price TermsEX-works, FOB, C&F, CIF
Payment TermsT/T, Western Union, MoneyGram, PayPal, L/C
Minimum Order10pieces
Delivery Time20days
Unit Price

General Introduction
Contactless IC Card Gas Meter is suitable for measuring the flow of natural gas, coal gas and liquid gas. One household fixed one meter and consumer uses gas by IC card. No need of house call fee-charge and avoid owing.

Characteristics
1. Prepaid, contactless IC card patent technique, water proof and anti-attack. Its inside circuit is sealed with high performance sealant, so it can work normally even under humid environment.
2. Micropower energy consumption technique ensures two years service life of inside batteries.
3. Power by 3 pieces of AAA alkaline batteries and automatically close valve when change batteries.
2. Compact size, light weight, high sensitivity and accuracy.
3. High metrological performance, low pressure loss and steady operation.
4. Moving parts are self-lubricating materials with lower friction, which can prolong the service life of meter.
5. Inside simple absolute structure is suitable for different kinds of gas, can filter and precipitate the impurity or dust.
6. Whole meter design against illegal access.
7. High quality internal plastic and stainless metal components, internal and external protection with powder painting guarantees a long service life.

Technique Specifications



Item
G1.6
G2.5
G4.0
Shell Material
Steel
Meter Level
Class B
Airproof
No leaking for 3 minutes under 1.5 times max working pressure
Nominal Flow Rate
1.6m³/h
2.5m³/h
4.0m³/h
Max Flow Rate
2.5m³/h
4m³/h
6m³/h
Min Flow Rate
0.016m³/h
0.025m³/h
0.04m³/h
Basic Inaccuracy
Qmax≥Q≥0.1Qmax        ≤±1.5£¥
0.1Qmax£¾Q≥Qmin         ≤±3£¥
Min Reading
0.0002m³
Max Reading
99999.999m³£¨Steel Shell£©
IC Card Service Life
≥100,000 Times
Alarm Way
Close Valve
Alarm Volume
50m³/2 m³
Static Working Current
≤20μA
Working Temperature
-10¡æ¡«50¡æ
Working Temperature
0.5¡«30KPa
Total Pressure Loss
≤200Pa (Under Qmax)
Service Life
≥10 Years



Model

ISM-003---steel shell, LCD display, left/right entrance, gas leaking alarming port, G1.6/2.5/4.0
